Technical Specification
VTH1020J
Button Type – Touch button
Basic
Display – 7.0″ TFT
Screen Resolution – 1024 × 600
Status Indicator
1 indicator light
Green: Power on
Function
Communication Mode – Analog
Performance
Casing – PC + ABS
General
Color – White
Power Supply – DC12V/1A
Power Adapter – Included
Installation – Surface mount
Certifications – CE/FCC
Accessory – Bracket (included)
Dimensions – 133.90 mm × 182.70 mm × 17.70 mm (5.27″ × 7.19″ × 0.70″)
Operating Temperature – -10°C to +55°C (+14°F to +131°F)
Operating Humidity – 10%RH–95%RH
Power Consumption
≤ 2W (standby)
≤ 5W (working)
Net Weight – 0.25 kg (0.55 lb)
Gross Weight – 0.48 kg (1.05 lb)
VTO1000J
Button Type – Mechanical
Basic
Camera – 1.3MP CMOS
Field of View
Horizontal: 70°
Vertical: 40°
WDR – DWDR
Illuminator Type – Auto IR
Day/Night – ICR auto switch
Audio Input – 1 channel to the microphone; pickup distance 0.5 m
Audio Output – 1 channel to the speaker
Status Indicator
1 indicator light
Green: Power on
Function
Communication Mode – Analog
Unlock Mode – Local unlock
Performance
Casing – ADC12
Port
Exit Button – 1
Door Status Detection – 1
General
Color – Black
Power Supply – Powered by indoor monitor
Installation – Surface mount
Certifications – CE/FCC
Accessory – Rain cover (included)
Dimensions – 131.45 mm × 46.00 mm × 33.80 mm (5.18″ × 1.81″ × 1.33″)
Protection Grade – IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Operating Temperature – –30°C to +60°C (–22°F to +140°F )
Operating Humidity – 10%RH–95%RH
Power Consumption
≤ 1W (standby)
≤ 3W (working)
Net Weight – 0.18 kg (0.40 lb)
Gross Weight – 0.38 kg (0.84 lb)

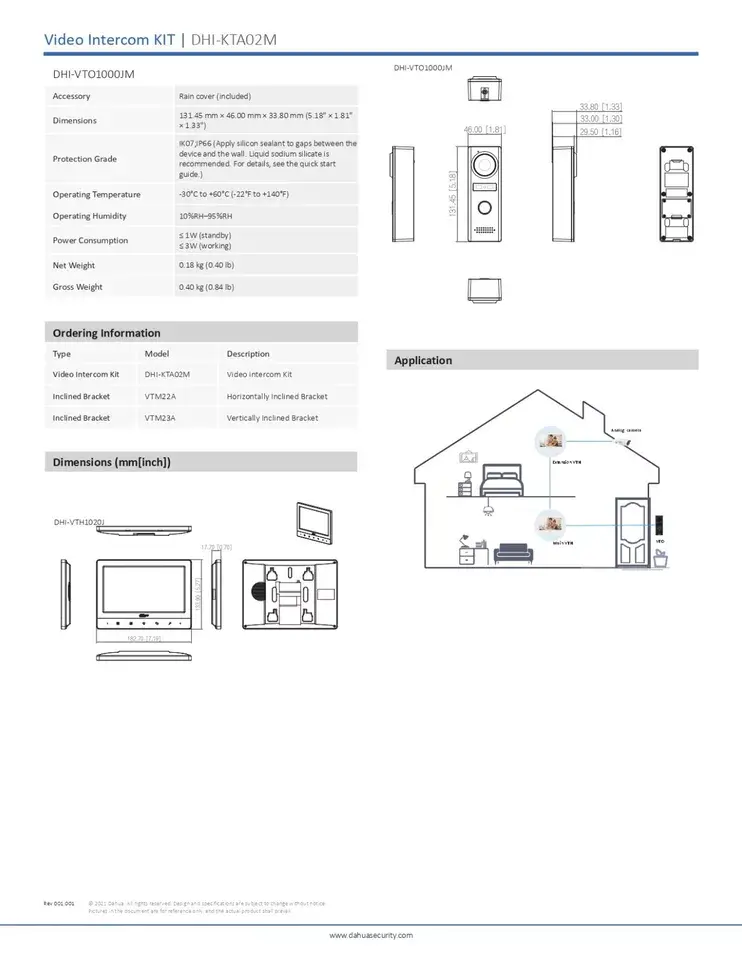

Available Model
DHI-KTA02M
